Product>Heart Monitoring>ECG
|
|
|
|
|
|
|

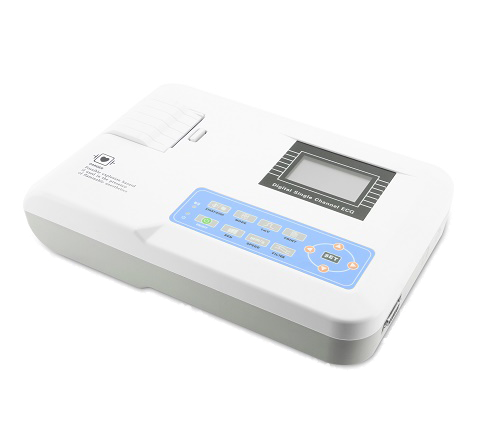

ECG - 101G
|
Digital Single Channel ECG Features:
- 2.7” Stn-LCD,accurate and clear ECG waveform display.
- Continuous record for ECG waveform and annotation.
- High-resolution thermal printer achieves real-time print of ECG waveform.
- Power supply AC/DC, built-in rechargeable lithium battery.
- Up to 10h standby time, continuous print up to 4h,
- Record up to 160 ECG waveform.
- Paper speed: 25,50mm/s ± 5%
- Paper size: 50mm×20m
- Dimension:
-- 190mm(L)×90mm(W)×40mm(H) (ECG80A) Handheld
-- 315mm(L)×215mm(W)×77mm(H) (ECG100G)
|
| |
ECG 80A |
|
|
|
| |

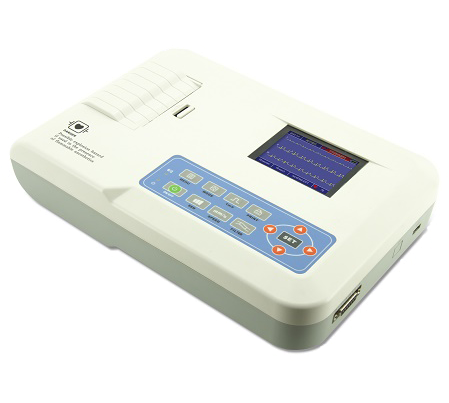

ECG - 300G
|
Digital 3 Channel ECG Features:
- 3.5” color LCD
- Sync collection for 12-led ECG, display 3/6 lead ECG on one screen.
- High-resolution thermal printer achieves real-time print of ECG waveform and report.
- Optional ECG-Sync software achieves sync collection, storage and analysis of ECG data.
- Power supply: AC/DC, built-in rechargeable lithium battery.
- Paper size: 80mm×20mm.
- Dimension:315mm(L)×215mm(W)×77mm(H).
|
|
|
|
|
|
|

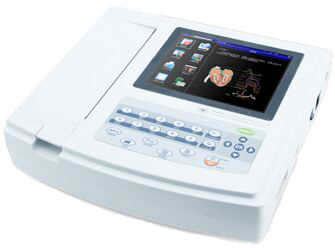

ECG - 1200G
|
Digital 12 Channel ECG Features:
- 8” TFT-LCD (touch screen)
- Operation mode: touch screen and function keys.
- Sync collection for 12-led ECG, free combination for baseline, AC and EMG filter.
- Store up to 1000 cases, convenient for case review and statistic.
- Optional ECG-Sync software achieves sync collection, storage and analysis of ECG data.
- Power supply:
--AC: 100~240V, 50/60Hz
--DC: built-in rechargeable lithium battery,14.8V/3700mAh
- Paper speed: 5, 6.25, 10, 12.5, 25, 50mm
- Paper size: 210mm×20m
- Dimension: 340mm(L)×320mm(W)×85mm(H)
|
| |
|
|
|
|
|
|
Please write with subject head "ECG Pricing", and specify the Model required.
|
|
|
| |
